Shipping rigid LED foldable grow lights across the ocean eats into your margin before the fixture even reaches your warehouse. The Elite series solves that with a 180° triple fold frame that ships flat and sets up in minutes - without giving up the output a commercial grow room actually needs. Available in 860W, 1100W, and 1200W, every Elite LED foldable grow light runs on Samsung/Sanan large chip diodes and 1-4 way dimming control, built for growers who need consistent output across a full commercial grow room.
Products Feature
Samsung and Sanan Large Chip Diodes
Large chip diodes from Samsung and Sanan, industry-leading brands. Larger chip surface area means better heat dissipation and higher current tolerance. Rated PPE up to 2.9 µmol/J.

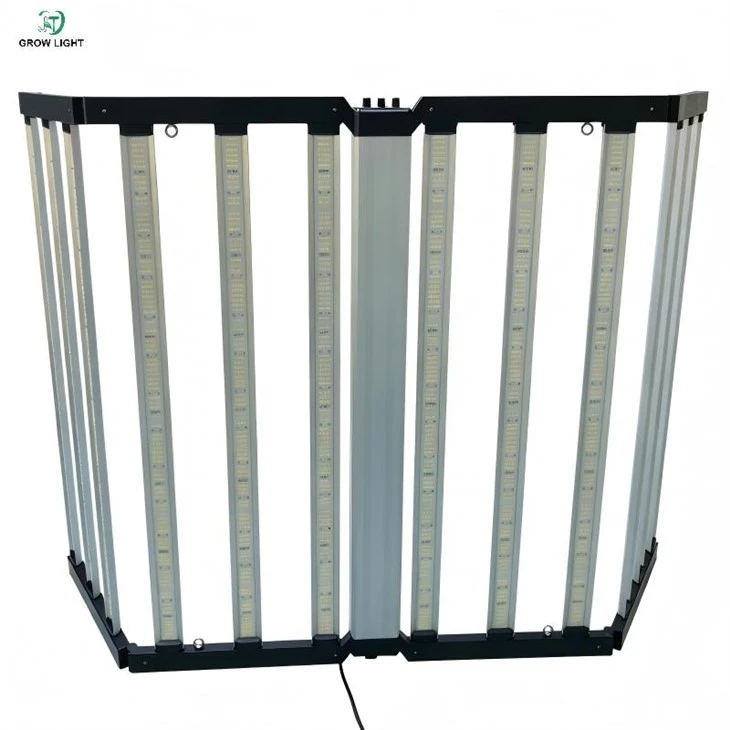

Elite Triple Fold LED Grow Light Structure
The Elite series folds flat at 180° for shipping, so more units fit per carton and per container - lowering freight cost per fixture. On site, it unfolds and locks into place with no tools required. The fold joints are reinforced to handle repeated open and close.
Multi Channel Dimming: 1 Way to 4 Way Control
Choose 1-channel for simple control or up to 4-channel for granular spectrum tuning, all with 0-10V stepless dimming. UV and far-red (IR) share one dimming channel by design, keeping the ratio balanced automatically - with a standalone UV-only mode available for growers who want independent control. This foldable LED grow light with UV IR dimming design gives new users a safe default without losing precision for advanced growers.
4x4ft /4x6ft Coverage for Commercial Grow Rooms
The 860W and 1100W cover a standard 4x4 ft footprint, while the 1200W uses an extended frame for 4x6 ft coverage in larger rooms. Even bar spacing means no hot spots and no dim corners, so canopy quality stays consistent edge to edge - built as a foldable LED grow light for commercial grow room use, not a single-tent fixture.
Product Specifications
| Parameter | 860W | 1060W | 1200W |
| Model | JT860W3F-4X4-2X/3X | JT1060W3F-4X4-2X/3X | JT1200W3F-4X6-2X/3X |
| Output Power | 860W | 1060W | 1200W |
| LED Chip Source | Samsung / Sanan | Samsung/ Sanan | Samsung/ Sanan |
| Input Voltage | AC100～277V/180-528V | AC100～277V/180-528V | AC100～277V/180-528V |
| PPF (Photon Flux) | 2500 umol/s | 3050 umol/s | 3550 umol/s |
| PPE (Photon Efficacy) | 3.0 umol/J | 3.0 umol/J | 3.0 umol/J |
| Beam angle | 120° | 120° | 120° |
| Product Dimensions | L1105*W1100*H65.5mm | L1105*W1100*H65.5mm | L1800*W1100*H65.5mm |
| Package Size | 1135*95*1020mm | 1135*95*1020mm | 1135*95*1020mm |
| Net Weight | 11.6kg | 12.8kg | 14.5kg |
| Packing Weight | 14.5kg | 16kg | 17kg |
| Dimming Method | 3 in 1 dimming 0-10% | 3 in 1 dimming 0-10% | 3 in 1 dimming 0-10% |
| Input Voltage | AC100-277V / 180-528V | AC100-277V / 180-528V | AC100-277V / 180-528V |
| Cooling method | Passive cooling | Passive cooling | Passive cooling |
| Lifespan | 50000h | 50000h | 50000h |
| Standard Warranty | 5 years | 5 years | 5 years |

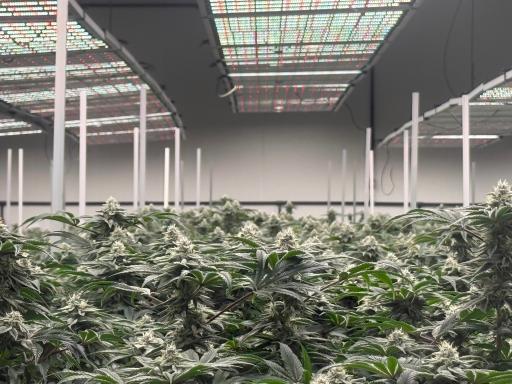

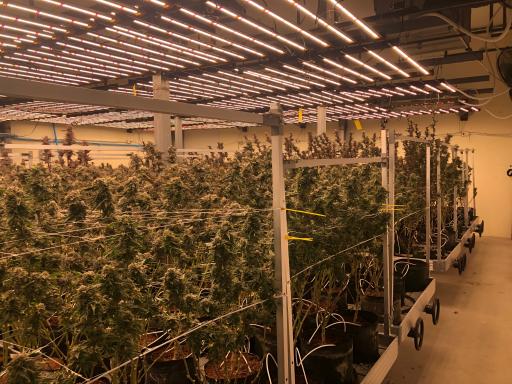

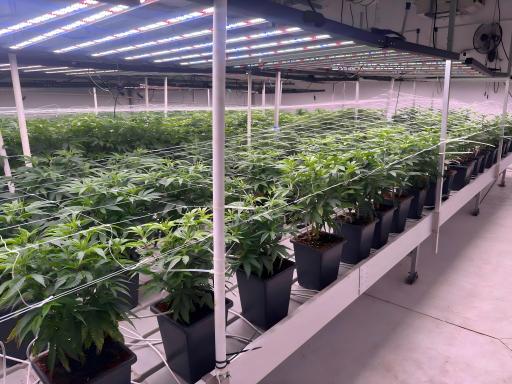

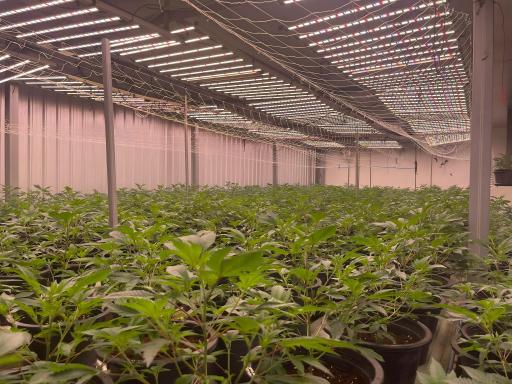

Application Scenarios
US Farm
Thai Farm
US Farm
Australian Farm
European Farm
Canada Farm
- Custom drawing service: send your design, we produce to spec
- Custom sample replication: send a sample, we match it
- Custom spectrum tuning for specific crop types
- Custom power options: 860W / 1100W / 1200W and others on request
- Custom housing color: gray, black, yellow, green, purple, blue
- Custom logo printing for OEM/ODM branding
This makes the Elite series a common pick for distributors and brands searching for a reliable LED foldable grow light manufacturer for private label or OEM foldable LED grow light programs.
FAQ
Q: What's the difference between the 860W Elite LED grow light, 1100W Elite LED grow light, and 1200W Elite LED grow light?
A: Same diodes, same fold structure, same dimming system. The difference is power and footprint: 860W/1100W cover 4x4 ft, 1200W covers 4x6 ft with a higher max PPF.
Q: Which Elite model is in stock now?
A: 1100W. The 860W and 1200W are made-to-order.
Q: Do I need 4-channel dimming, or is 1-channel enough?
A: 1-channel is enough for a single-crop room. 2-channel to 4-channel is better if you're managing multiple grow stages or crops under one fixture.
Q: Why are UV and IR on one dimming channel?
A: To keep the ratio balanced by default without manual adjustment. A standalone UV mode is available for growers who want independent control.
Q: Can these LED foldable grow lights be linked for a full commercial room?
A: Yes, over RJ45/RJ14 wiring for synchronized dimming across a full row or room.
