If you've been shopping for a foldable LED grow light lately, you've probably noticed something: not all folding lights look the same. Some have wide, chunky bars. Others are slim and compact. Most listings don't explain why - they just show you a wattage number and a coverage area.

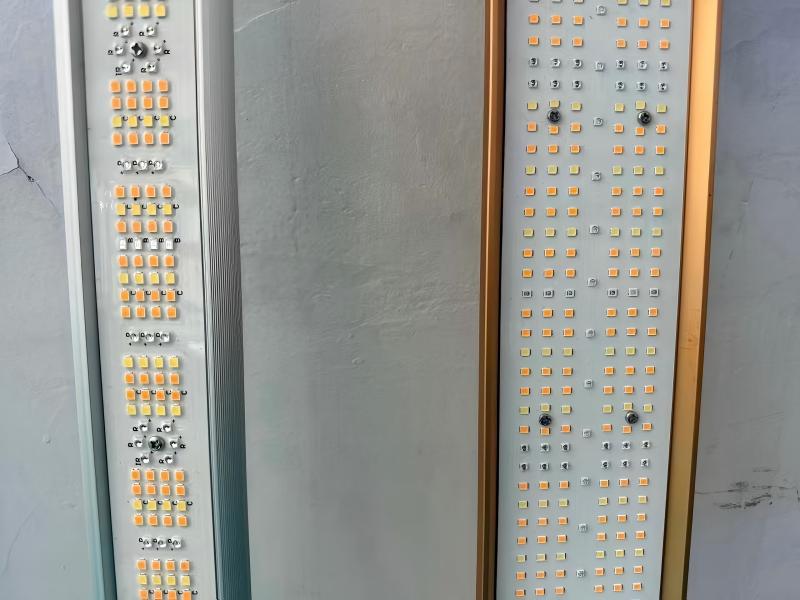

Here's the thing: the width of the light bar matters more than most people realize. At JT Grow Light, we manufacture two versions of our foldable grow lights - one with 120mm-wide bars and one with 55mm-wide slim bars - and the differences go well beyond appearance.

This article breaks down exactly what changes between the two designs, who each one is built for, and how to figure out which one your operation actually needs.

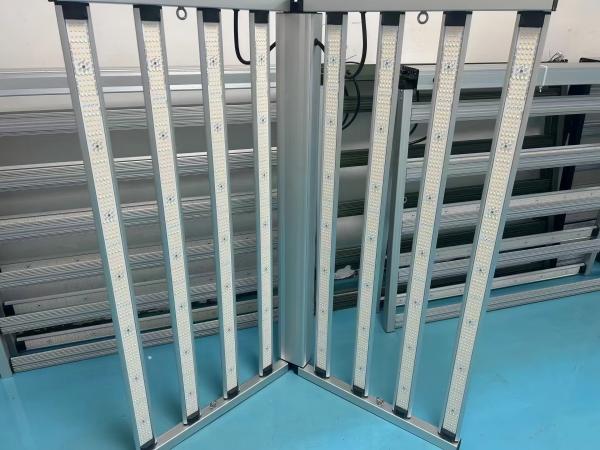

A foldable LED grow light uses multiple vertical light bars connected to a central frame that folds flat for shipping and storage. When you hang it, the bars spread out to evenly cover your canopy.

The bar itself is where all the action happens - it holds the LED chips, the circuit board, and the aluminum heat sink. So when you change the width of that bar, you're not just changing the look. You're changing the thermal performance, light distribution, weight, and cost.

That's why the 120mm vs 55mm bar design is actually a meaningful engineering decision, not just a style choice.

01

Better Heat Dissipation, Longer Lifespan

This is the biggest advantage of the wider bar, and it's the reason we developed it.



LED chips generate heat during operation. If that heat doesn't dissipate fast enough, the chip degrades - slowly at first, then faster. The aluminum base of the light bar is what pulls that heat away. A 120mm wide aluminum bar gives you roughly 2× the surface area of a 55mm bar. More surface area means faster cooling, lower operating temperature, and a longer useful life for every chip on that board.



In practical terms: a well-cooled LED grow light running at lower junction temperatures can maintain 90%+ of its original output for 50,000+ hours. A light running hot will drop below 70% output well before that. For a commercial grower running lights 18 hours a day, that difference adds up fast.

02

More Even Light Distribution (Better PPFD Uniformity)

Wider bars allow LED chips to be spaced further apart across the board. This produces a smoother, more even light footprint - what growers measure as PPFD uniformity across the canopy.



With a narrow bar, chips are packed tightly in a narrow line. The center of each bar gets intense light, while the edges and gaps between bars can be noticeably dimmer. Plants growing under uneven light don't develop uniformly, which affects both yield and quality.



The 120mm-wide bar spreads chips across a broader surface, closing those gaps and producing a more consistent light environment from edge to edge in your 4×6 ft grow space.

03

Higher Wattage Capacity Per Bar

Because heat is managed more effectively, each 120mm bar can carry more LED chips and run at higher power without thermal throttling. This is why our 1200W foldable grow light uses a wide-bar design - you simply can't push that kind of power through a narrow bar without compromising reliability.



For commercial LED grow light applications, vertical farms, or any operation where you're running lights hard for long hours, the wide bar is the right foundation.

Lighter Weight, Lower Shipping Cost

A slimmer bar means less aluminum per unit, thereby reducing the finished light's weight. For buyers ordering in bulk, this translates into lower freight costs per unit-and for end users, a lighter fixture is easier to hang, adjust, and move.



If you're supplying grow lights wholesale to retail channels or selling to home growers who ship to residential addresses, weight savings matter.



More Compact When Folded

The 55mm bar folds down to a noticeably thinner package. Smaller carton dimensions mean more units fit on a pallet, further reducing shipping costs and improving logistics efficiency. For bulk order grow light fulfillment, this is a real operational advantage.



Lower Entry Price Point

Less material, simpler thermal management, lower manufacturing cost - the slim bar design is the right choice for price-sensitive markets. It's well-suited for home grow tent setups, hobby growers, or markets where buyers prioritize upfront cost over long-term performance metrics.



A quality 55mm bar LED grow light running at an appropriate wattage for its design still delivers solid results for indoor growing applications. It just has a tighter performance ceiling than the wide bar version.





Here's a simple way to think about it

01.

Choose the 120mm wide bar if:

• You're running a commercial grow operation or vertical farm
• You need consistent, high-output lighting for 12–20 hours per day
• You're covering 4×6 ft or larger canopy footprints
• Long-term reliability and light output stability matter more than upfront cost
• You're a distributor or wholesaler targeting professional growers

02.

Choose the 55mm slim bar if:

• Your customers are home growers or hobbyists
• You need a lighter, more compact fixture for smaller tents
• Shipping cost and carton size are important factors in your pricing model
• You're entering a price-sensitive market segment
• You want a solid LED grow light for indoor plants at a competitive price point

Both versions carry CE, FCC, and RoHS certifications, ensuring compliance with US and European market requirements without any import headaches.

Over the past two years, we've seen a clear trend in the LED grow light manufacturer space: the market is moving toward wider-bar designs for mid- to high-power products. The reason is straightforward - as grow light wattages increase (800W, 1000W, 1200W and beyond), thermal management becomes the limiting factor, not the LEDs themselves.

Wider bars are one of the most practical ways to solve that problem without adding fans or complex cooling systems. Our 1200W foldable grow light with 120mm bars is a direct response to what commercial growers in the US market have been asking for - more power, better heat handling, longer lifespan.

The 55mm slim bar continues to serve a large and important segment of the market. But if someone tells you bar width is just cosmetic, they haven't thought through the engineering.

If you're wondering why wide bar designs have become the dominant choice in the US commercial grow market in the first place, we recommend reading this first: Why Wide Bar LED Grow Lights Are Taking Over the US Market in 2025–2026

JT Grow Light is a professional LED grow light manufacturer based in China, supplying wholesale and OEM customers in the US, Europe, and beyond. Both the 120mm wide bar and the 55mm slim bar foldable grow lights are available for sample requests and bulk orders.
